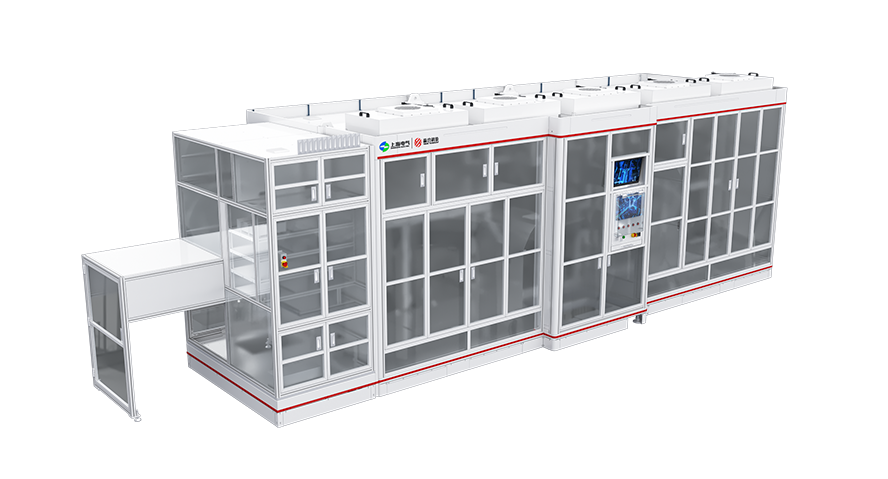

Prismatic power battery winding machine
Efficiency：
6ppm(Length of electrode: 16m)
Qualification rate:
≥99.5%
The equipment is mainly used for the fully automated winding of power batteries, with online overhang detection and closed-loop control. After cold pressing, pre-shaping, and Hi-pot testing, the material is unloaded via a conveyor belt.
Equipment Parameters

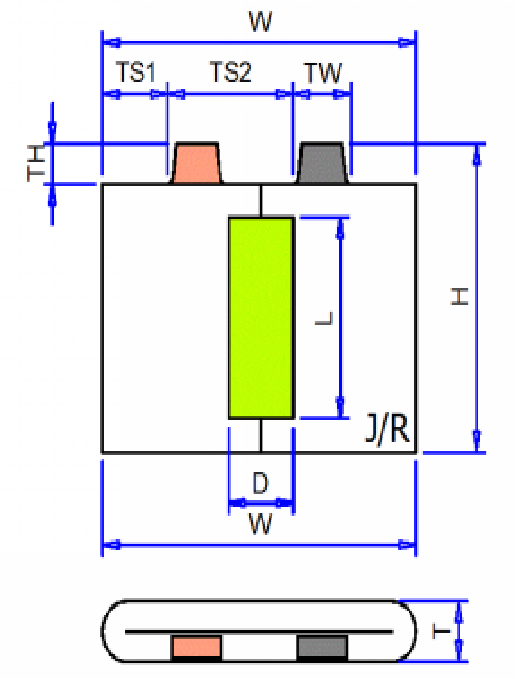

Equipment model | YWPB300 | YWPB450K | Cell diagram |
|---|---|---|---|
Compatibility range | H:80-270 W:100-300 T:10-40 TH:≤35 | H:200-420 W:100-230 T:10-40 TH:≤35 |  |
Line speed fluctuation | ＜±1 | ＜±1 | |
Tension fluctuation | ＜±3% | ＜±3% | |
Winding alignment(mm) | ＜±0.3 | ＜±0.3 | |
Efficiency | 6ppm (Length of electrode: 16m) | 6ppm (Length of electrode: 16m) | |
| Qualification rate | ≥99.5% | ≥99.5% |
Related Products
-
Prismatic power battery laser and winding integrated machine
This equipment integrates laser tab forming and automatic winding.
-
Laser notching and slitting integrated machine
The equipment adopts globally renowned brands of lasers, galvanometers, and F-theta lenses, combined with advanced laser control algorithms to achieve real-time speed and energy tracking during cutting, ensuring consistent cutting quality.
-

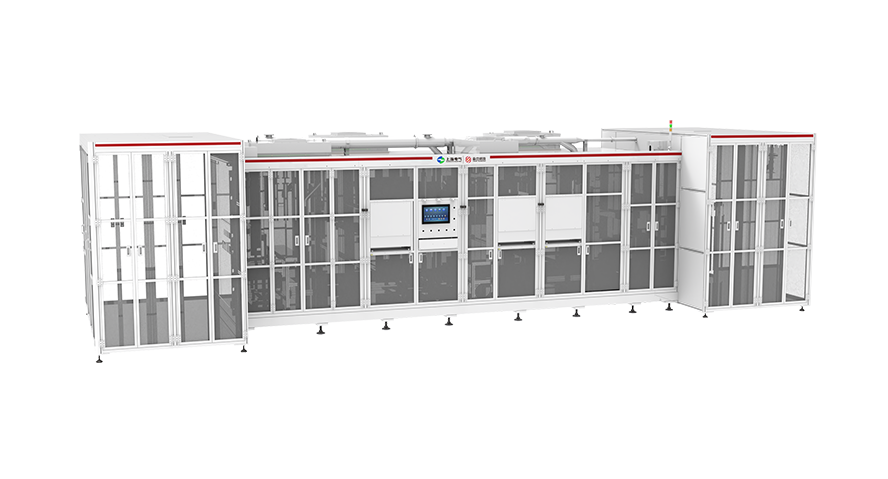

Laser cleaning machine
